- Less waste of laminating material.
More than a flatbed applicator
The EWS gives you as a user many benefits in order to quickly get the accurate quality for your laminated products:
- Less risk of damage to the sign material.
- Less waste of time.
Our patented DACT (Digital Adjustable Click Torque) Technology is a truly technical paradigm shift for flatbed applicators. The disadvantages with traditional analog technology based on an Air Compressor controlled Roller is now passed into history and replaced with our modern Digital Technology – DACT.

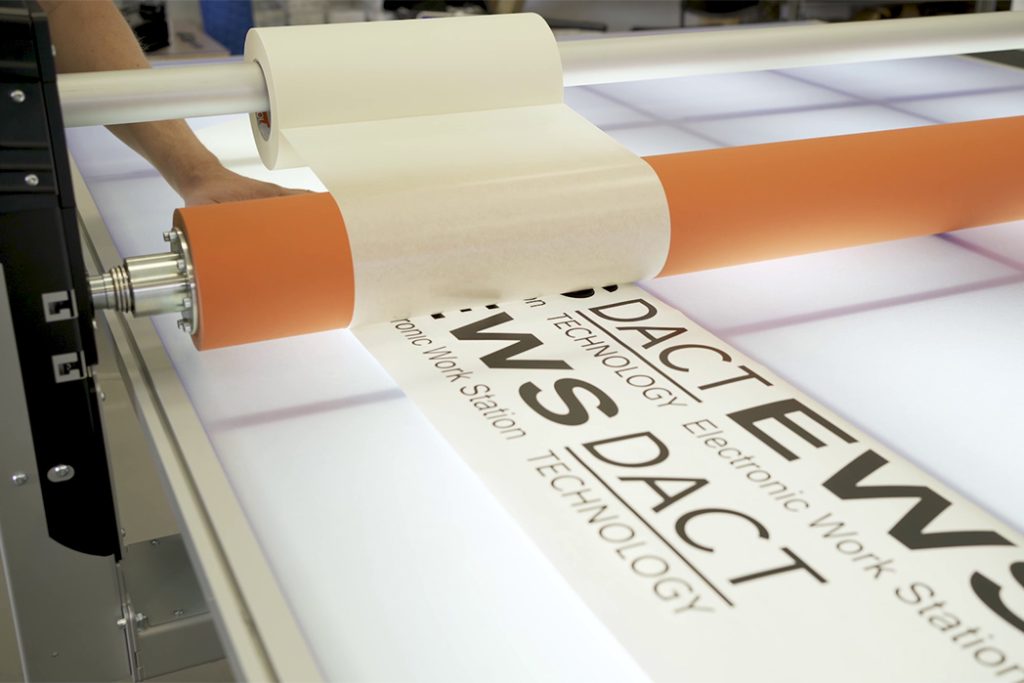

The DACT Technology is based on an electronically controlled pressurized roller. This ensures the roller will be exactly parallel towards the table surface. Due to the DACT Technology, the application process does not need to be done in the exact middle of the table. No damages on pressure sensitive materials in corners or ends of the material. Supporting posts are not needed during application.
Easy to handle
The DACT Technology also makes the EWS Workstation very easy to handle:Â
- Fail-Safe Brake System: Keeps the roller locked securely in position even after the power is turned off.
- Next-Gen Spring Rollers: Upgraded mechanical springs ensure ultra-smooth and precise roller guidance.
- Perfect Level Retention: Advanced brake technology ensures the roller remains perfectly horizontal and locked in place, preventing any tilting or sagging even when power is shut off in a raised position.
- High-Precision Spring Roller: Upgraded mechanical springs deliver powerful, consistent pressure against the table while ensuring ultra-smooth vertical movement.
- Dynamic Spring-Loaded Guidance: Advanced mechanics guarantee high-force roller contact and friction-free vertical travel.
- Self-Aligning Home-to-Nest Function: Features an intelligent pressure-correction system that seamlessly dampens and resets the roller horizontally as it returns to its home position. This eliminates hard mechanical impacts while ensuring perfect, mistake-free alignment for every new job.

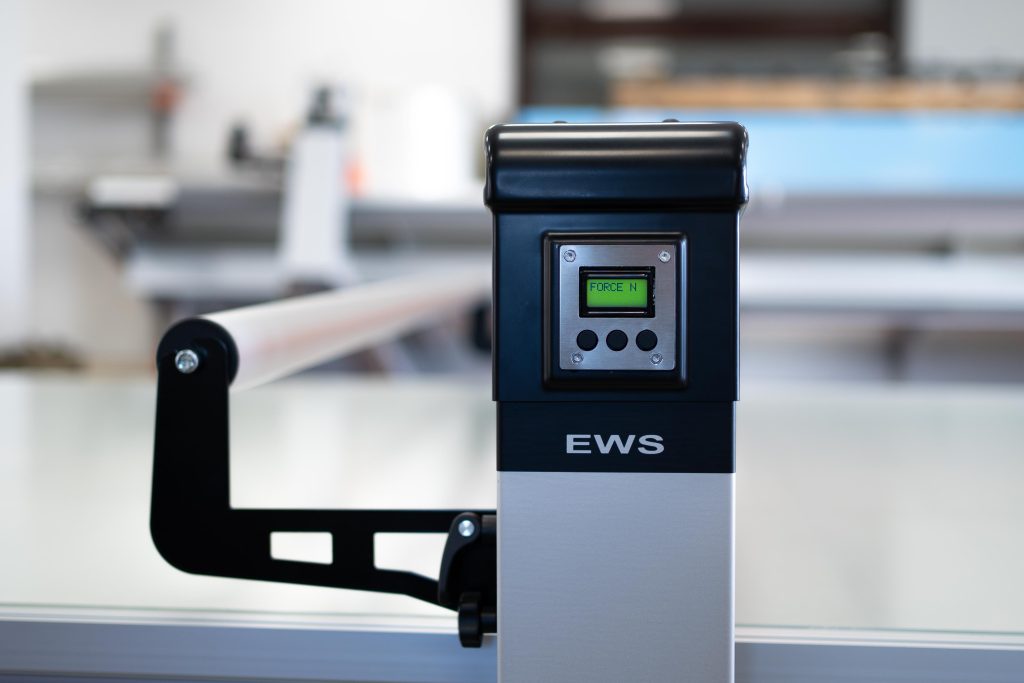

Six levels of roller pressure available to get optimized pressure for any type of application.
Appropriate pre-programmed pressures for certain materials, easily set with quick commands.
Work anywhere on the table. No more stretching towards the middle

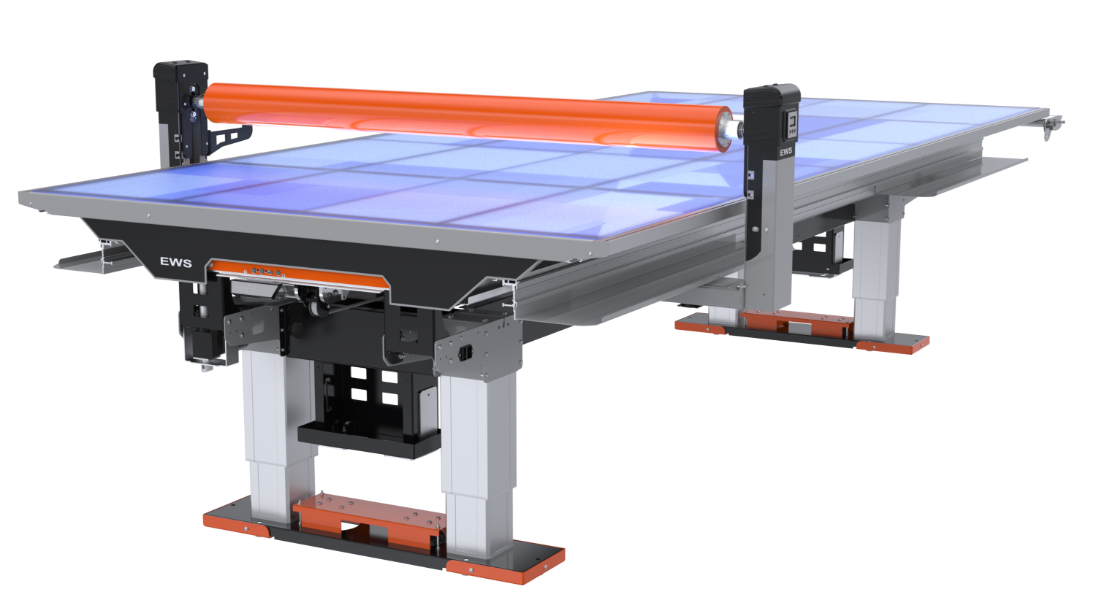

LED-illumination
LED backlighted surface
with variable brightness
makes it easy to use crop marks.
Cutting grooves
Recessed grooves for cutting knife on both sides of the table surface.

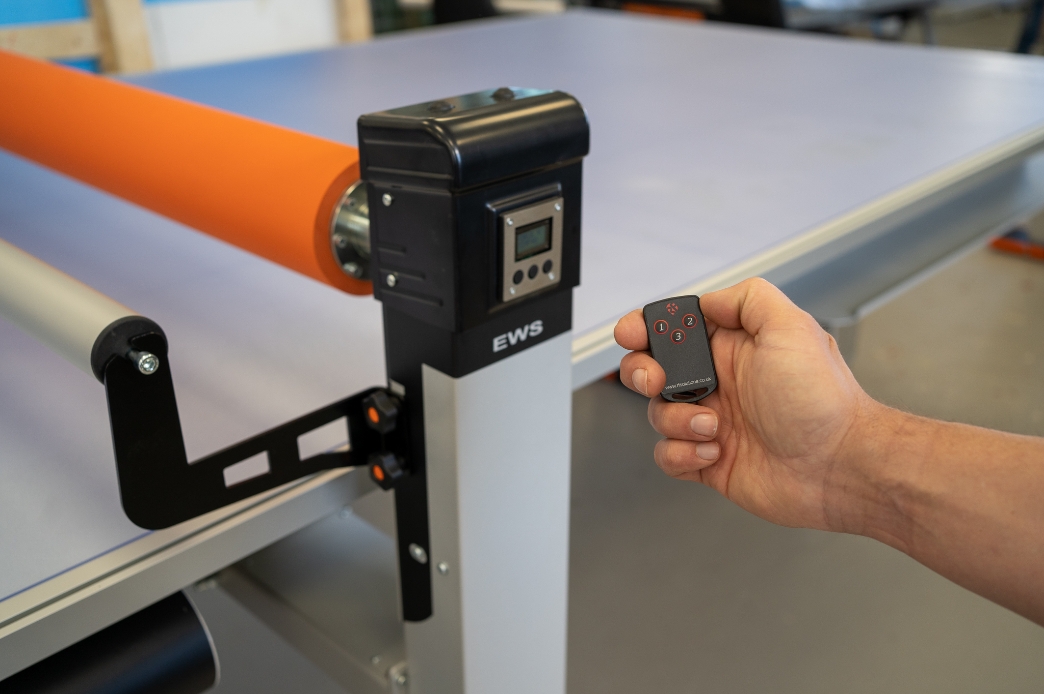

Motordrive
Operate the Glidebeam and the roller with a remote control at a constant speed to avoid an uneven longitudinal application. The Motor drive has four different speeds.

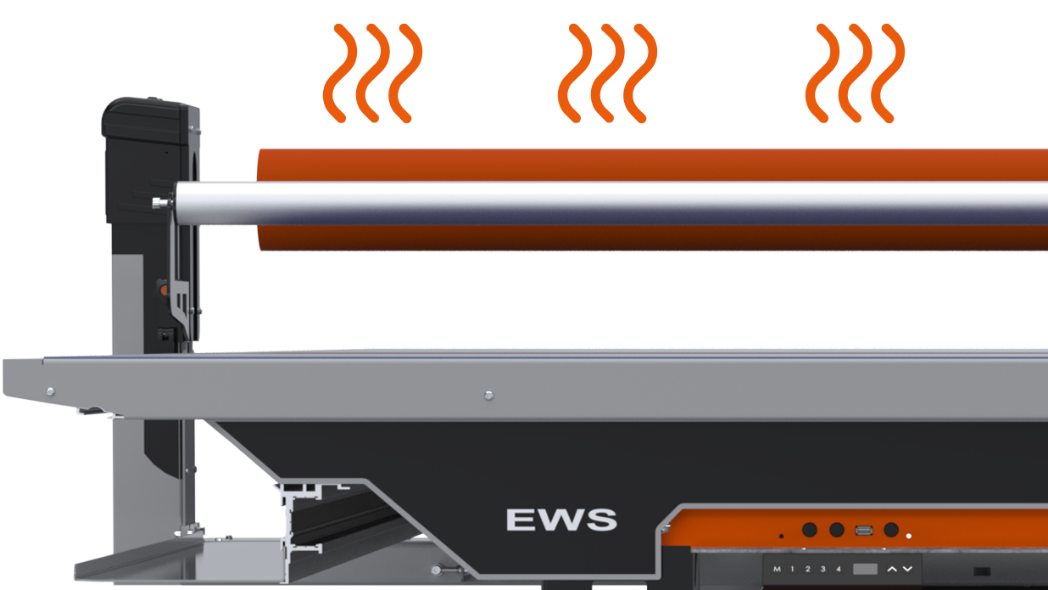

Heat roller
30-60° (86-140°F)
Reducing silvering in the application process. Designed to give an even temperature along the complete working area of the table during the application process.
